- Product Description
-

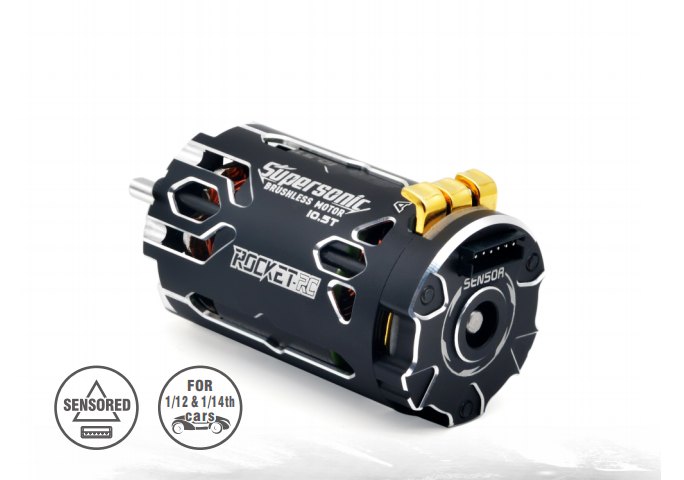

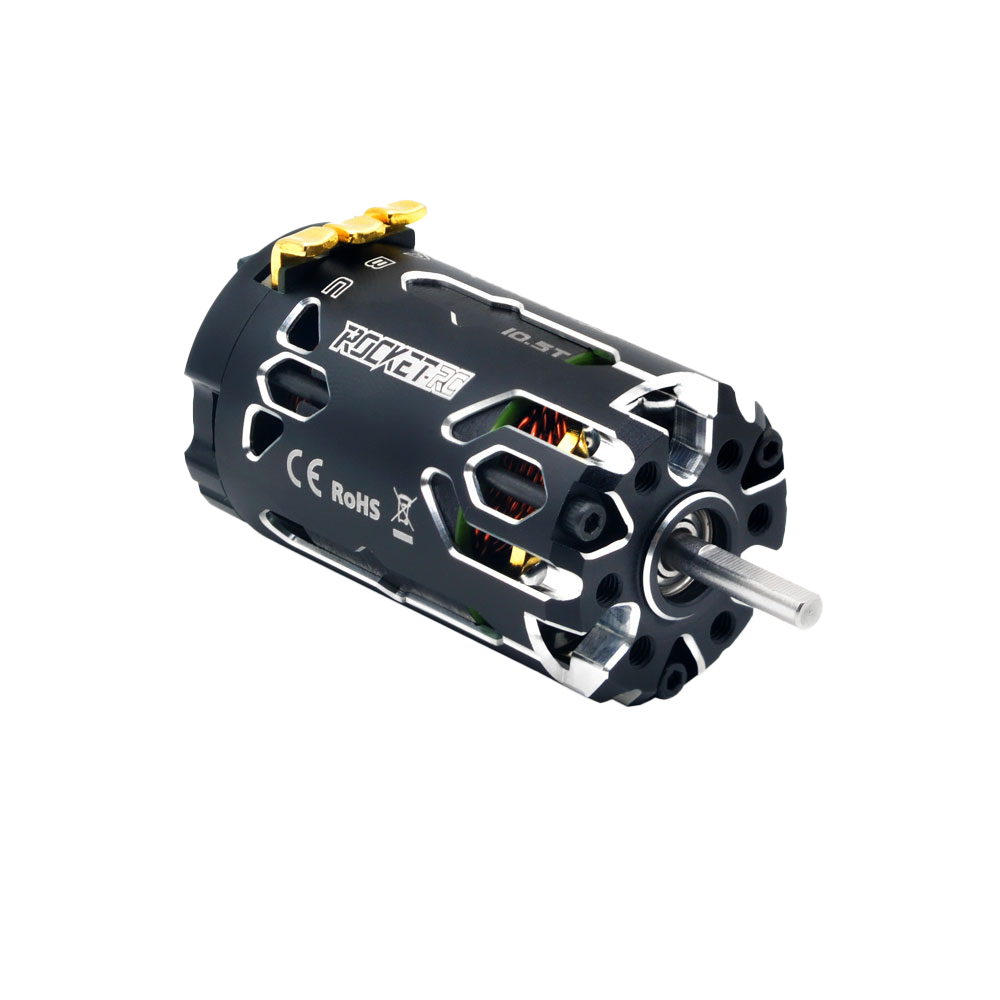

SUPERSONIC 380 SENSORED BRUSHLESS MOTOR
For 1/12 & 1/14th scale Racing Car
IFMAR, ROAR BRCA EFRA Compliance
- IFMAR, ROAR BRCA EFRA Compliance.

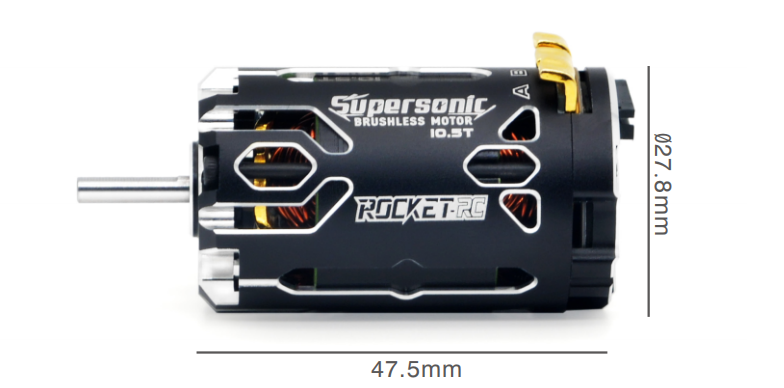

- Standard 380 size, M3-16 / 19mm mounting hole distance, Ø3.175mm shaft, suitable for 1/12 & 1/14th scale RC car.
- Provide 8.5t/10.5t/13.5t/17.5t, 4Turns , compatible with more brands of ESC.

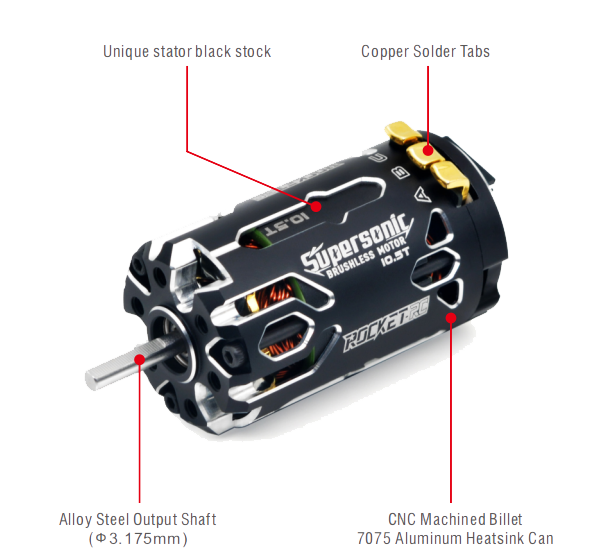

- High strength 7075 imported aluminum alloy cans with unique smooth edge hollow out design, surper light weight and efficient heat dissipation.
- American original 1EI/AIW(H) copper wire winding has extremely low resistance, super magnetic high temperature resistance, and eh grade rotor has more efficient kinetic energy output.
- Japan NSK high precision bearing makes the motor run more smoothly.
- The unique gold-plated thickened ABC copper SolderTabs operate freely at a high temperature of 150 °C.
- Removable/Replaceable design which is convenient for cleaning and maintenance and effectively prolongs the service life of the motor.
EXPLODED VIEW
Detachable design, easy to clean and maintain
SUPERSONIC 390 SENSORED BRUSHLESS MOTOR
For 1/12 & 1/14th scale Off-road Buggy, Truck, Crawler RC car.
Product KV
(RPM/Volt)Watts lipo(S) Max
AmpsPole 10
(7.4V)Resistance
(m)Turns Rotor
(mm)Motor Size
(mm)Weight
(g)Shaft
(mm)Supersonic380 5000KV 320 1-3S 75 2 3.5A 15.1 8.5 Ø10.5xØ5x24.1 Ø27.8x47.5 96 Ø3.175 Supersonic380 4000KV 250 1-3S 60 2 3.0A 23.0 10.5 Ø10.5xØ5x24.1 Ø27.8x47.5 96 Ø3.175 Supersonic380 3300KV 190 1-3S 45 2 2.0A 39.1 13.5 Ø10.5xØ5x24.1 Ø27.8x47.5 96 Ø3.175 Supersonic380 2500KV 130 1-3S 32 2 1.5A 57.5 17.5 Ø10.5xØ5x24.1 Ø27.8x47.5 96 Ø3.175

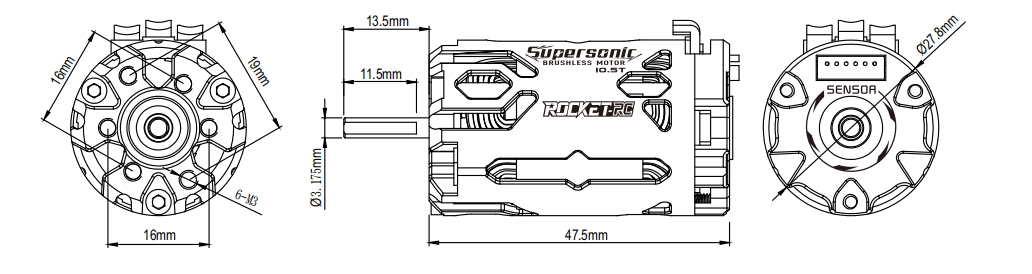

Detail Drawing
Attachment Download
User Manual Document Disclaimer
